Tensile Shade Structures and Sail Shades in the UAE
From building-code-compliant shade over parking lots and school yards to emergency retensioning for a sagging villa pool sail, Master Tents and Shades designs, builds and maintains tensile shade structures engineered for the UAE's heat, UV index, and seasonal Shamal winds.
Request A Site Assessment
Two Kinds of Enquiry, One Team
Shades for Facilities, Schools and Municipal Sites
Asset managers, school principals, and municipal procurement officers typically need fixed, building-code-compliant shade over parking lots, school yards, restaurant terraces, or public parks – infrastructure that has to pass inspection, not just look good.
Shades for Villa and Hospitality Owners
Villa owners and hospitality operators usually come to us with a direct pain point – a garden, pool or patio that needs cooling down, or an existing sail sagging under summer heat that needs urgent inspection, retensioning, or fabric replacement.
Engineering You Don't Have to Take on Faith
Regulatory Approvals Handled
Dubai Municipality, Trakhees, and Dubai Civil Defense submissions are managed on the client's behalf, from first drawing to final sign-off.
The 10–15 Year Lifespan Promise
Steel is chosen to resist oxidation and fabric is chosen to resist UV-driven discoloring and cracking – backed by a clear, stated lifespan.
In-House 3D Wind Load Analysis
Every frame is modelled before it's built, confirming it withstands seasonal Shamal sandstorms and winds up to 120–140 km/h.
Choosing Between Airflow and Full Waterproofing Shades
Breathable
HDPE, 320–340 gsm
A knitted mesh that blocks around 98% of UV rays while letting air move freely beneath the canopy.
Waterproof
PVC-Coated Polyester, 650–850 gsm
A fully sealed, 100% waterproof membrane built for permanent commercial installations that need complete rain cover.
Premium
PTFE (Teflon-Coated)
A self-cleaning, long-life fabric reserved for landmark permanent structures where finish and longevity outweigh upfront cost.
Hardening and Certification
Structural and Marine Hardening
Frames use hot-dip galvanized steel finished with anti-corrosive powder coating. Tension cables and turnbuckles are Grade 316 marine-grade stainless steel, specifically chosen to stop rust developing at high-friction connection points.
Safety Certifications
Fabric and frame components carry documented flame-retardancy certification against recognised international benchmarks – a paper trail available on request, not just a verbal assurance.
Sail Shade Designs We Build
Hyperbolic Paraboloid (Hypar) Sail Shades
A twisted-surface sail with two high and two low attachment points, which naturally optimises tension and helps deflect high winds.
Triangular and Multi-Tiered Sail Shades
Overlapping fabric layers anchored at staggered heights, creating a dynamic, layered look over pools and lounge decks.
Cantilevered Hanging Sail Shades
Heavy-duty, single-post structures for commercial parking lines and walkways that need to keep ground space clear.
Pre-Tensioned Cable-Edge Shade Sails
Large-span membranes with hidden internal perimeter cables that stop fabric sagging over school playgrounds or resort lawns.
Pre-Made Sail Shade Specifications
For smaller gardens and patios that don't need a full custom install, these are the common pre-made formats we can supply or match – alongside fully custom, fixed sails made to order.
Pre-Made and Retail-Style Sail Shades
- ShapeRectangle
- Size12' × 16'
- Edge StyleCurved
- Fabric Weight185 GSM
- TypeGarden Canopy Sail
- IncludesFixing Kit
- Water ResistanceWater-Resistant
- Best ForOutdoor Garden Shade
- ShapeTriangular
- IncludesMounting Ropes
- UV ProtectionYes
- Wind ProtectionYes
- TypeRetractable Wave
- Water ResistanceWater-Resistant
- UV Block98%
- MechanismManual Retract
- Size12' × 16'
- ColorBeige
- ShapeRectangle
- FabricPermeable Cloth Screen
- TypeRetractable Wave
- Size140 × 850 cm
- FabricPES (Polyester)
- Fabric Weight180 g/m²
- StyleFurl / Retracting
- ShapeSquare or Rectangular
- BreathabilityBreathable Weave
- MechanismFurling
- Size12' × 16'
- ShapeRectangle
- UV Block95%
- Fabric Weight185 GSM
- TypeFixed, Permanent Mount
- Order TypeCustom Made-to-Order
- ManufacturedDubai, UAE
- Best ForLong-Term Installations
Layout and Installation Guidance
Triangle Shade Sail Layout
A single or paired triangular sail anchored at three points – the simplest layout for tight corners, small patios, or a single seating area.
Multi-Sail Design Layouts
Combining several sails at varying heights and angles to cover larger areas while adding visual depth rather than one flat panel.
Overlapping Shade Sails
Staggering sails so their edges layer over one another, removing gaps in coverage and increasing shade between panels through the day.
Attaching a Sail to a House Wall
Uses a wall-mounted eye plate rated for the sail's tension load, paired with a turnbuckle so tension can be adjusted after install.
Thermal Comfort, Not Just Sun Cover
Breathable HDPE open-mesh fabric avoids the greenhouse effect that solid plastic or sealed covers create. A correctly specified open-mesh shade can drop the ambient temperature underneath it by roughly 10°C to 15°C.

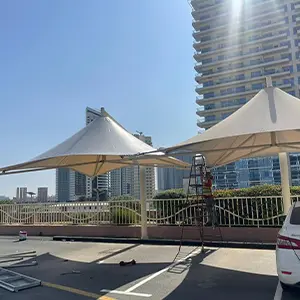

A Zero-Liability, Turnkey Regulatory Guarantee
For commercial developers, facility managers, and school administrators, the offer is simple: Master Tents and Shades manages engineering load analysis, foundation soil testing, and municipality permit processing end to end.
No legal risk or compliance stress passes to the client – the structure arrives approved, not pending approval.
Architectural Value, Not Just Fabric
A well-designed shade system should read as a permanent investment in the property, not a temporary fabric patch. A custom Hypar design or a premium material selection can turn an outdoor space into an architectural feature.
For luxury villa owners, boutique hotels, and residential developers, that feature plays a real role in the property's total appraised value.
By Project Type
Institutional Sites
Villas and Boutique Hospitality
Repair and Upkeep
Talk To Our Shade Structures Team
New installation or an existing structure that needs attention – either way, we'll take it from here.
Call +971 56 222 1906
